Gas Detection Sensors Tailored To The Functionality Your Team Needs

A leading gas detection program begins with configurable and reliable gas sensor technology. Blackline offers one of the largest portfolios of gas sensors on the market. We use only the highest quality sensors from leading providers including Ion Science, City Technology, MIPEX, Gas Sensing Solutions (GSS) and NevadaNano.

For detailed cartridge and sensor documentation, specifications, and guidelines for using, maintaining, and troubleshooting your gas sensor cartridges, please visit our help center.

Modular Gas Sensors for Maximum Versatility

With thousands of gas sensor configuration options, we make it easy to get the most from your gas detection budget. Our G8 personal gas detectors and EXO area gas monitor each feature a modular, plug-and-play gas sensor cartridge system.

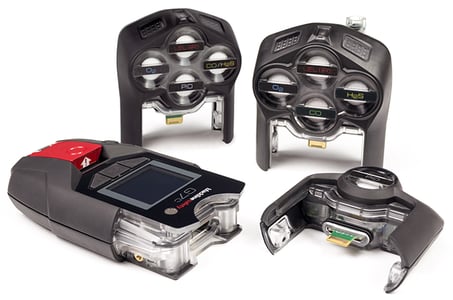

G7-with-three-cartridges-700x500

Single-gas Diffusion Cartridge
Our single-gas diffusion cartridges support you with a choice of over 20 sensors, including PID Gas sensors.

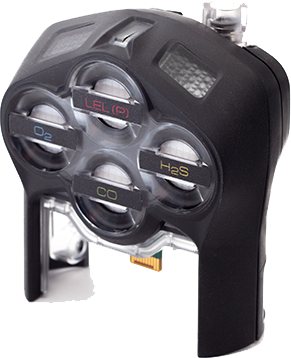

Multi-gas Diffusion Cartridge
Our multi-gas diffusion cartridge support up to five gases when equipped with a dual-toxic COSH gas sensor (CO and H2S). Easily swap from single gas detection to a multi-gas sensor on the same device.

G7 Multi-Gas detector with pump

Multi-gas Pump Cartridge
Designed for remote sampling, our multi-gas pump cartridge supports confined space entries and leak-check surveys. This cartridge supports both diffusion and pump operation modes. Pump detection is available for both G8 and EXO devices.

Area Gas Monitoring Cartridge

With a customizable four-gas cartridge pre-loaded, and the option to add a preset combination of four gases in the gas expansion module, Blackline EXO covers a wide spectrum. An optional integrated gamma radiation sensor can be specified when ordering EXO to further extend detection capabilities.

Available Gas Sensors

Ammonia (NH3)
Ammonia: high-range (NH3)
Carbon dioxide (CO2)
Carbon monoxide (CO)
Carbon monoxide: high-range (CO)
Carbon monoxide: hydrogen-resistant (CO-H)
Carbon monoxide and hydrogen sulfide (COSH (CO/H2S))
Chlorine (Cl2)*
Chlorine dioxide (ClO2)*
Combustible infrared (LEL-IR)
Combustible MPS (LEL-MPS)
Gamma Radiation
Hydrogen (H2)
Hydrogen cyanide (HCN)
Hydrogen fluoride (HF)*
Hydrogen sulfide (H2S)
Hydrogen sulfide: high-range (H2S)
Nitrogen dioxide (NO2)
Oxygen (O2)
Ozone (O3)*
Photoionization detection (PID ppm)
Sulfur dioxide (SO2)

*Not available with pump cartridge

Gas Cartridge & Sensor Info

Our G8 and G7x wearable single / multi-gas monitors and EXO portable area gas monitors can equip and swap between the sensors listed below.
Many gas sensors can be combined in a multi-gas cartridge, making thousands of potential gas detection portfolios accessible via a single device.

G6 single gas monitors come equipped with one of the following fixed sensors: CO, H2S, O2, or SO2.

Some sensor types cannot be combined in a multi-gas cartridge without impacting accuracy.
This list is not exhaustive of all available sensor options.

If you have questions about a particular sensor or custom configuration, please contact our expert advisors.

For detailed cartridge and sensor documentation, as well as bump testing, calibration, and zeroing guides, please visit our help center.

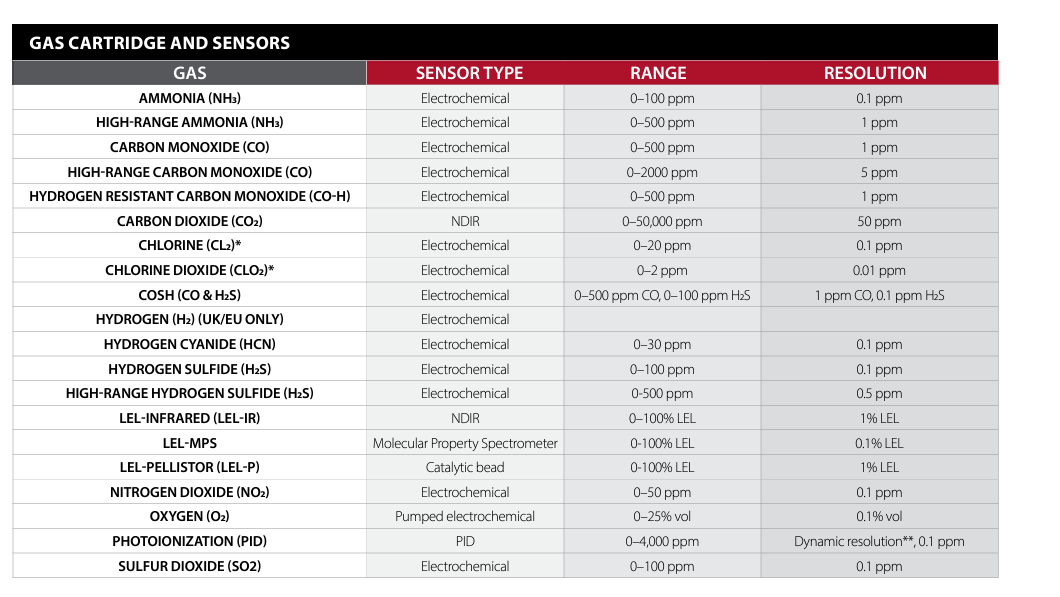

GAS	SENSOR TYPE	RANGE	RESOLUTION
AMMONIA (NH3)	Electrochemical	0-100 ppm	0.1 ppm
HIGH-RANGE AMMONIA (NH3)	Electrochemical	0-500 ppm	1 ppm
CARBON MONOXIDE (CO)	Electrochemical	0-500 ppm	1 ppm
HIGH-RANGE CARBON MONOXIDE (CO)	Electrochemical	0-2,000 ppm	5 ppm
HYDROGEN RESISTANT CARBON MONOXIDE (CO-H)	Electrochemical	0-500 ppm	1 ppm
CARBON DIOXIDE (CO2)	NDIR	0-50,000 ppm	50 ppm
CHLORINE (CL2)*	Electrochemical	0-20 ppm	0.1 ppm
CHLROINE DIOXIDE (CLO2)*	Electrochemical	0-2 ppm	0.01 ppm
CARBON MONOXIDE & HYDROGEN SULPHIDE (COSH) (CO & H2S)	Electrochemical	0-500 ppm CO, 0-100 ppm H2S	1 ppm CO, 0.1 ppm H2s
HYDROGEN (H2) (UK/EU ONLY)	Electrochemical	0-40,000 ppm	1% LEL (400 ppm H2)
HYDROGEN CYANIDE (HCN)	Electrochemical	0-30 ppm	0.1 ppm
HYDROGEN SULPHIDE (H2S)	Electrochemical	0-100 ppm	0.1 ppm
HIGH-RANGE HYDROGEN SULPHIDE (H2S)	Electrochemical	0-500 ppm	0.5 ppm
HYDROGEN FLOURIDE (HF)*	Electrochemical	0-10 ppm	0.1 ppm
LEL-INFRARED (LEL-IR)****	NDIR	0-100% LEL	1% LEL
LEL-MPS***	Molecular Property Spectrometer	0-100% LEL	0.1% LEL
LEL-PELLISTOR (LEL-P)	Catalytic Bead	0-100% LEL	1% LEL
NITROGEN DIOXIDE (NO2)	Electrochemical	0-50 ppm	0.1 ppm
OXYGEN (O2)	Pumped Electrochemical	0-20% vol	0.1% vol
OZONE (O3)*	Electrochemical	0-1 ppm	0.1 ppm
PHOTOIONIZATION (PID)	PID	0-4,000 ppm	Dynamic Resolution**, 0.1 ppm
SULFUR DIOXIDE (SO2)	Electrochemical	0-100 ppm	0.1 ppm

* - This sensor is not compatible with the pump cartridge.

** - Dependent on correction factor.

*** - Operating pressure: 80 to 120 kPa (11.6 psi to 17.4 psi).

**** - The A-CART only operates in pump mode, regardless of configuration.
